Z-Scale Track Dimension

Measured as good as possible. All dimensions in mm.
Track for Z-scale are available from different vendors, Märklin, Peco and MicroTrains(+ some more).

Here you can find the dimension for the different types:


Brand WT WB H C G TH TW TL S
Märklin 0.75 1.2 1.58 62 6.60 1 1.2 11.8 3.74
Micro-Trains 0.50 1.2 1.45 57 6.65 1 1.1 12.4 2.54
Peco 0.80 1.3 1.65 65 6.70 1 1.5 12.4 4.03

WT=Width Rail Top
Schematic track drawing, legend
WB=Width Rail Bottom
H=Height Rail
C=Code(Calculated)
G=Gauge, inside between rails
TH=Tie Height
TW=Tie Width
TL=Tie Length
S=Tie Spacing

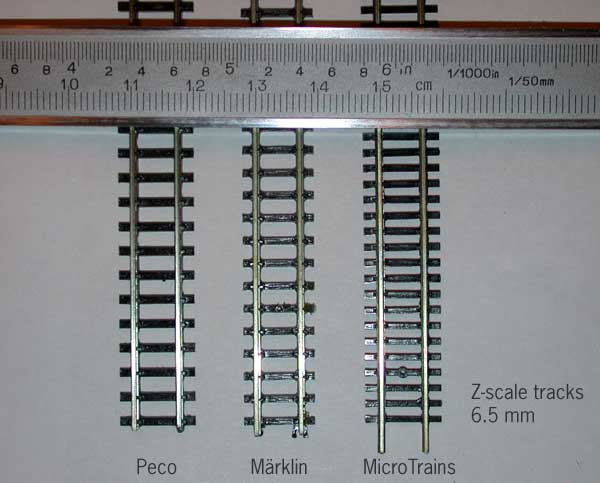

The different tracktypes available:
